Direct Injection Rainwater Harvesting System

Rainwater is a natural resource that is often neglected. It is a high-quality and abundant source available every rainy season and has the potential to reduce reliance on freshwater sources.

Rain is often treated as a nuisance and allowed to run off. This mindset must shift to viewing rainwater as a valuable asset that should be collected and reused.

Rainwater harvesting:

• Enables reuse of water for non-potable purposes
• Reduces groundwater usage
• Provides economic and environmental benefits
• Supports climate change adaptation strategies

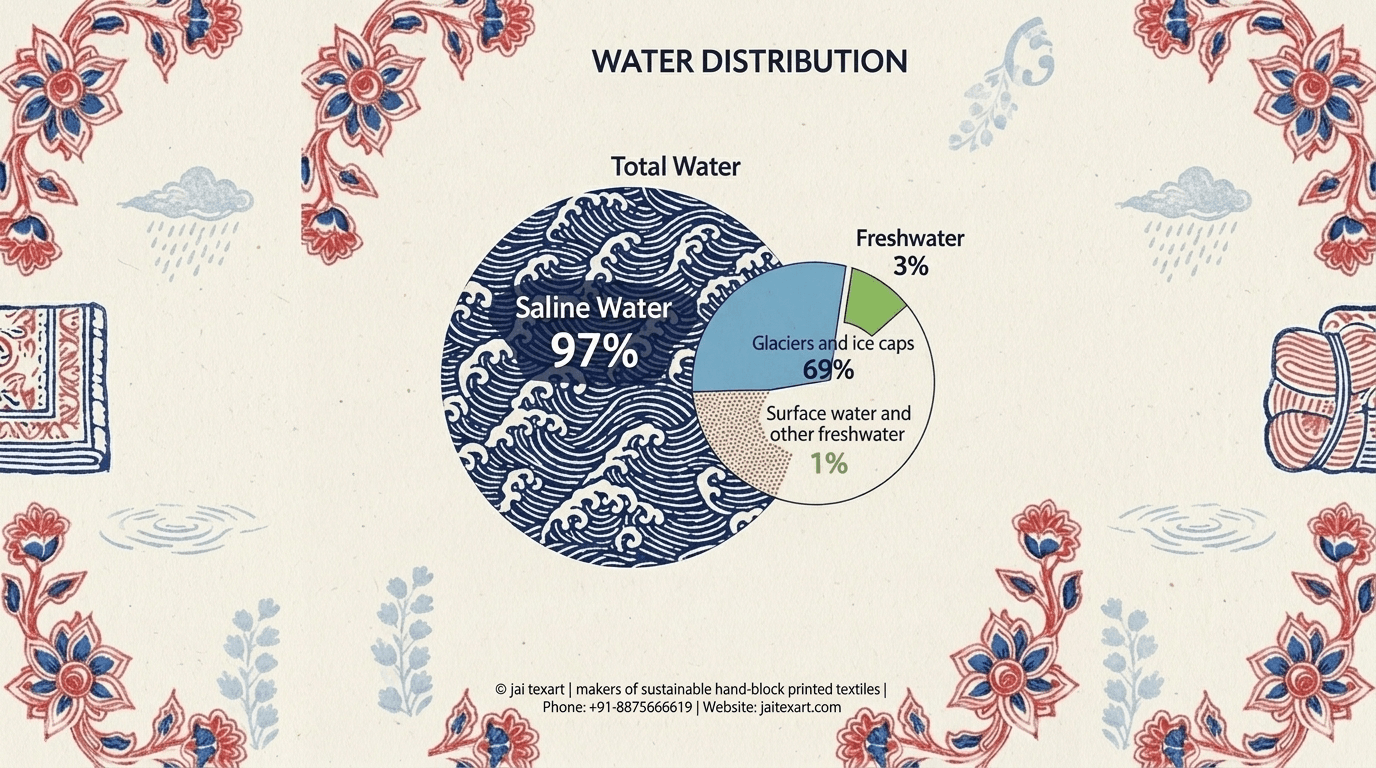

Water scarcity is one of the most pressing global challenges, affecting communities, agriculture, and industries.

At Jai Texart, sustainability is embedded in operations. A Direct Injection Rainwater Harvesting System has been implemented to conserve water, recharge groundwater, and ensure long-term water security.

Based on 6 years of continuous hands-on experience, this system has proven effective in addressing water scarcity.

Key observations:

• Continuous operation across multiple monsoon cycles
• Improved borewell performance over time
• Stable water availability even during low rainfall

This approach is practical, proven, and replicable.

• Recharge groundwater naturally
• Reduce dependency on external water sources
• Ensure year-round water availability
• Promote sustainable water use
• Create a scalable model for industries and communities

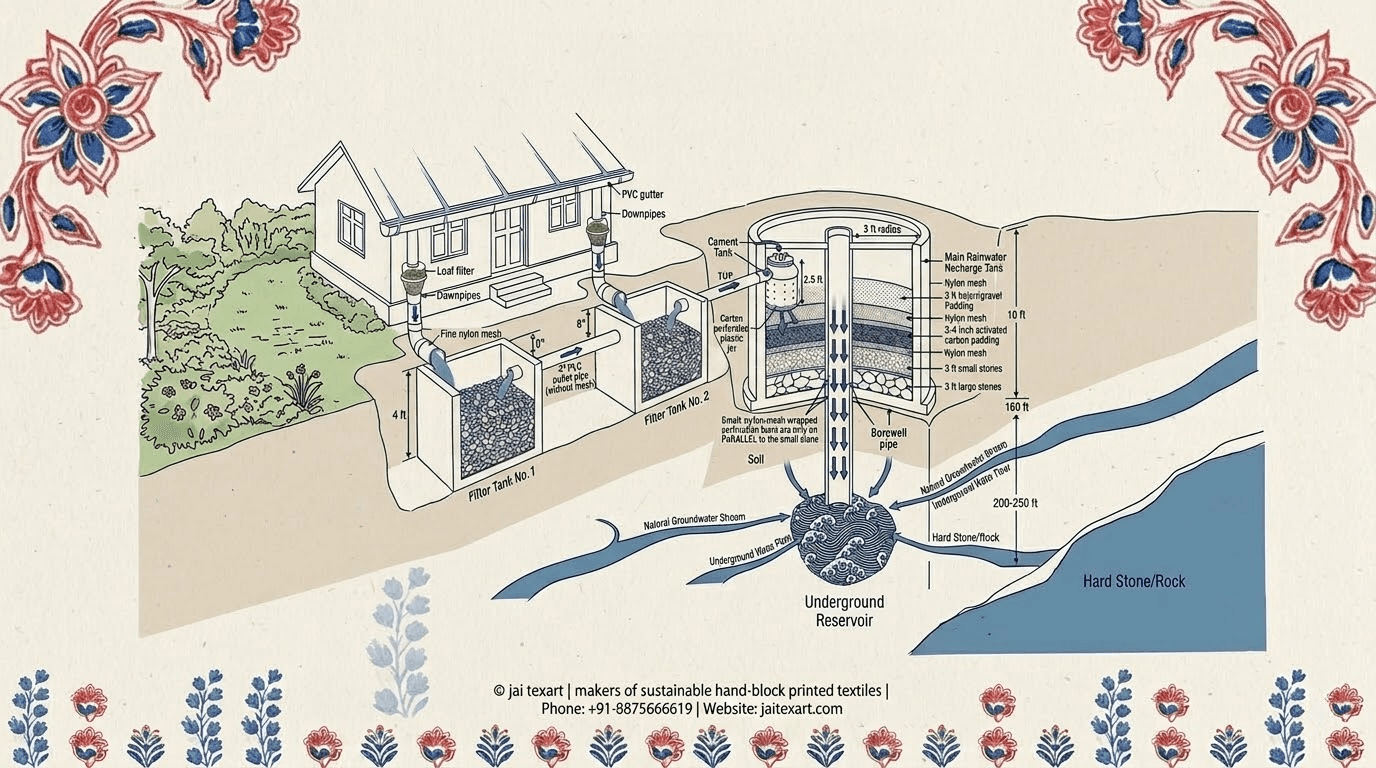

The system allows rainwater to pass through multiple natural filtration stages before reaching deep underground aquifers.

Key Design Principles

• No direct roof-to-borewell connection
• Step-by-step filtration through tanks and natural media
• Controlled water entry into the borewell
• Excess water follows natural groundwater pathways

This ensures safety, balance, and sustainability.

• Rainwater is collected only after the first two rains to remove dust and contaminants
• Rooftop PVC pipes include leaf filters
• Pipe openings are covered with fine nylon mesh

Impact

• Prevents contamination at source
• Ensures cleaner water enters the system

Filter Tank No. 1 - Primary Filtration

• Receives 100% of rooftop rainwater
• Filled with pebbles
• Allows heavy particles to settle

Filter Tank No. 2 - Secondary Filtration

• Receives water from Tank No. 1
• Provides additional filtration
• Ensures stable water quality

Impact

• No chemicals or energy required
• Low-maintenance, gravity-based system

The main recharge tank is a deep cement-ring structure with:

• Stone layers
• Gravel (bajari)
• Activated carbon
• Nylon mesh separators

A side-placed activated carbon jar provides additional filtration.

Impact

• Improves water quality
• Extends borewell lifespan

• Borewell pipe has small perforations below filtration layers
• Only filtered water enters the borewell
• Excess water joins natural groundwater systems

This prevents overloading and maintains ecological balance.

Geological Structure

• Sand layer up to approximately 160 feet
• Hard stone layer extending 200-250 feet

Continuous recharge creates an underground reservoir in the stone layer, which connects with natural groundwater streams.

Impact

• Long-term groundwater storage
• Improved drought resilience

Environmental Benefits

• Groundwater recharge without energy use
• Reduced pressure on municipal water systems
• Improved aquifer health

Operational Benefits

• Improved borewell yield
• Reliable water availability
• Reduced operational risk

Social Impact

• Demonstrates responsible industrial water use
• Provides a replicable model
• Supports regional water sustainability

• UN Sustainable Development Goal - Clean Water and Sanitation
• Responsible manufacturing practices
• Long-term environmental stewardship

At Jai Texart, this initiative reflects the belief that industrial growth and environmental responsibility must go hand in hand.

With 8 years of proven performance, the Direct Injection Rainwater Harvesting System is a scalable, practical, and impactful solution to water scarcity, both locally and globally.
